Expert Features

• ADVANCED COOLING. EFFORTLESS MONITORING : The BOREAS E2-41D Series, features 4 advanced copper heat pipes with direct contact technology, a thick copper base plate, one 120mm high-performance hydraulic bearing PWM fan, and covered with a crystal-clear digital screen to see top cooling performance in real time.
• DIGITAL AND POWERFUL : Coated in all black with a digital display at the top, the cooling solution stands out as a premium cooling solution with a real-time crystal monitoring system covering the sleek aluminum tower.
• PREMIUM COOLING SOLUTION : The cooler is equipped with five advanced copper heat pipes with direct contact technology, a thick base plate for increased performance, and a bigger surface area for more efficient heat transfer.
• SILENT AND POWERFUL : The unit is equipped with a 120mm high-quality fan that can provide airflow up to 72.94 CFM and a static pressure of 2.63 mmH2O. With premium hydraulic bearing and PWM function, the fan ensures up to 1800 RPM in silent operation.
• FULL DRAM CLEARANCE : This CPU cooler provides unobstructed access to DIMM slots which enable users to easily upgrade on both Intel and AMD motherboards.
• UNIVERSAL COMPATIBILITY : The BOREAS E2-41D Series comes with the GAMDIAS Universal Mounting Kit for easy installs on both the lastest Intel and AMD platforms. (LGA 1700/AM5)

Expert Specs

• Fan Dimensions 120 x 120 x 25 mm
• Fin Material Aluminum
• Fan Speed 800-1800 RPM ±10%
• Air Flow 72.94 CFM
• Air Pressure 2.63 mmH2O
• Noise Level 10-32 dBA
• Bearing Hydraulic
• Heatpipe Material Copper
• Product Dimensions 120 x 75 x 159 mm
• Connector 4 Pin PWM / 9-Pin USB
• Rated Voltage 12 V (Fan)
• Compatibility LGA1700/1151/1150/1155/1156/1200/2011/2066/AM5/AM4

Package Contents

• Air Cooler PWM 120 mm Fan：1
• Single Heatsink with 4 Heatpipes：1
• Thermal Grease：1
• Universal Socket Mounting Kits

Expert Features

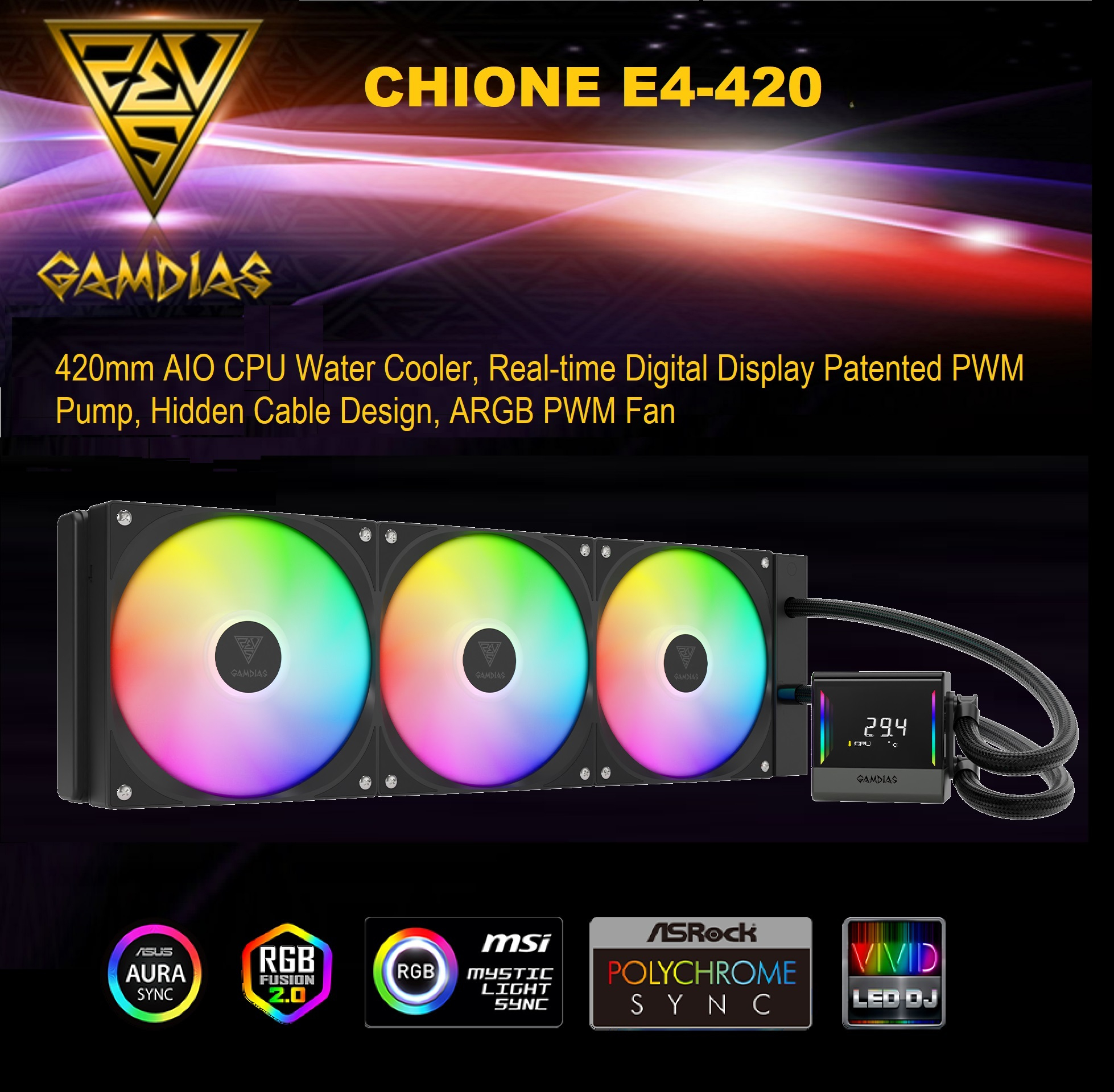

• Real-time Display: The CHIONE E4-420 WH empowers users to monitor real-time system information through the intuitive ZEUS CAST software. This versatile software enables the selection of display modes, including CPU temperature, temperature alarms, and fan speed RPM information.
• Upgraded PWM Pump: The CHIONE E4-420 WH features a patented PWM pump operating at 4600 RPM positioned on the side of the radiator, providing elite performance and extending lifespan due to reduced bracket vibration. Additionally, the detachable chamber streamlines the fan installation process.
• Radiator Optimized Fans: Engineered to enhance airflow efficiency, the PWM fans operate at speeds of up to 1800 RPM, delivering exceptional static air pressure and airflow rates of up to 73.36 CFM. These hydraulic bearing fans incorporate PWM functionality and customizable RGB lighting, ensuring optimal cooling performance and visually captivating aesthetics.
• Effortless Cable Management: The meticulously designed hidden cable routing mechanism effectively addresses cable management challenges, resulting in a clean and organized system build.
• Universal Compatibility: The CHIONE E4 Series ensures seamless installation on both Intel and AMD platforms, including LGA 1700 and AM5 socket compatibility, facilitated by the inclusion of universal mounting kits.

Expert Specs

• Dimensions 140 x 140 x 25 mm
• Speed 450 - 1800 RPM±10%
• Noise Level 11 - 35.2 dBA
• Air Flow 100.28 CFM
• Air Pressure 2.57 mmH2O
• Bearing Hydraulic
• Rated Voltage 12 V (Fan) / 5V(LED)
• Connector PWM & 5V sync
• Support PWM Control Yes
• Radiator Dimensions 456 x 140 x 27 mm
• Tube Material EPDM
• Base Plate Material Copper
• Radiator Material Aluminum
• Sleeved Tube Yes
• Pump Rated Voltage 12 V (Pump)
• Pump Connector 4 Pin
• Compatibility LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 / AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
• Support Motherboard RGB Sync Connectors : 5V 3-pin addressable (digital) RGB header Only

GAMDIAS AEOLUS M3-1204R BLACK 4*FANS HYDRAULIC 2000RPM

• Brand : GAMDIAS
• Included components : Fan x 3, Reverse Fan Blade x 3, Extension Cable x 2, Lighting Controller x 1  "USB AEOLUS BOX II "
• Compatible devices : Desktop
• Model name : AEOLUS P2-1203U

EXPERT FEATURES

Cable-less Daisy Chain Design:

• Each AEOLUS P2 fan can link up without multiple cables due to a solid interlocking structural design, creating a convenient assembly experience.
• Daisy-chain multiple fans and connect them to the USB AEOLUS BOX II to fully customize your experience through our ZEUS CAST software, adjusting lighting effects, fan speeds, and more.

Swappable Fan Blades Included :

• AEOLUS P2-1203 includes three pre-installed standard orientation fan blades and three reversed orientation fan blades, offering a flexible option for switching the airflow from intake to exhaust without changing the fan case orientation.
• With a premium hydraulic bearing and PWM function, the fans can generate maximum airflow at minimal noise while maintaining a long lifespan.

Airflow Configuration:

• The AEOLUS P2 fans allow you to configure airflow orientation without sacrificing aesthetics simply by replacing the inner fan blades from intake to exhaust and vice versa.

30mm Frame Thickness:

• The increased overall thickness of the frame to 30mm expands the contact surface for the fan blades and air tunnel and offers superior air pressure of up to 3.1mmH2O and airflow of up to 74.97 CFM with fan speeds ranging between 1000 and 2400 RPM.

Gamdias Ecosystem:

• The AEOLUS P2-1203 is compatible with USB AEOLUS BOX II and ZEUS CAST software.
• Users can customize the lighting effects including the interior and exterior strips, brightness, and lighting speed via ZEUS CAST software when the fans are connected to the USB AEOLUS BOX II.
• ZEUS CAST software allows adjustment to the fan speed based on the temperature and provides real-time status to monitor cooling performance.

EXPERT SPECS
