Standalone Fingerprint Reader with Network Capability (RFID access)
ZK iface502 Time Attendance Machine Biometric Fingerprint Face Recognition with WIFITime Clock Access Control System , 4.3 TFT touch screen , Hi-Res Infrared Camera , Card Reading , Wiegand Signal – Silver & Black
Attendance Machine Fingerprint Face Recognition
Expert Description
- 500 face and 2,000 fingerprint templates
- Multi-language
- High verification speed
- Advanced and user-friendly UI
- Optional built-in battery backup, providing approximately 4 hours of continuous operation
- New Framework firmware, easy to extend functions and customize client's requirements
- One face template is registered for one user only
- Able to detect whether the face is an
- actual face or a photo, enhancing the security level of verification
- iFace 502 Facial multi-biometric time & attendance and access control terminal supports up to 500 face templates, 2,000 fingerprint templates and 10,000 cards.
- With ZK latest hardware platfrom and algorithm, it offers brand new UI and user-friendly operation interface to provide smooth user experience.
- With advanced face algorithm and multi-biometric verification technology, the terminal's security level of verification is significantly enhanced.
Expert Specification
1.CPU: Multi-Bio CPU 630 MHz 2.Memory: 256M Flash, 64M SDRAM 3.Hardware Platform: ZMM220 Multi-Medium Development Platform 4.Fingerprint Sensor: Optical Fingerprint Sensor without film 5.Camera: High Resolution Infrared Camera 6.Display: 4.3 TFT touch screen 7.Face capacity: 500 (1:N) 8.Fingerprint capacity:2000 9.Card capacity:10000(optional) 10.Logs capacity: 100,000 11.Algorithm Version: Face 7.0 & Finger 10.0 13.Communication: TCP/IP,RS232/485 14.Time attendance Standard functions: Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST 15..Access control interfaces for: 3rdparty electric lock, door sensor, exit button 16.Wiegand Signal: Output 17.Power supply:12V3A 18.Verification Speed:2 sec 19.Operating temp:0C- 45 C 20.Operating Humidity:20%-80%ZKTECO S30 BIOMETRIC TIME ATTENDANCE MACHINE – 3.0″ TFT LCD – Fingerprint and/or PINs – Optional ID/IC – RS232/485, TCP/IP, U-Client, U disk – Optical Sensor | Graphite Silver ZKT-S30
Zkteco S30 Biometric Time Attendance Machine
Expert Features
- * Color TFT screen with GUI Interface for ease of use
- *Optical Sensor
- *1 touch a-second user recognition
- *Stores 3,000 templates and 100,000 transactions
- *Reads Fingerprint and/or PINs
- *Optional integrated proximity or smart card reader
- *Built-in Serial and Ethernet ports
- *Built-in USB port optional, allows for manual data transfer when network isn't available
- *Built in bell scheduling
- * Real-time 1-touch data export 3rd party hosted &nonhostedapplicationsAudio-Visual indications for acceptance and rejection of valid/invalid fingers
- *SDK available for OEM customers and software developers
- Fingerprint Capacity 3000
- Card Capacity 10,000
- Transaction Capacity 100,000
- RS232/485, TCP/IP, USB-host
- Workcode, SMS, DLST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input, photo-ID, Anti-passback,Webserver
- Wiegand Signal
- Input &Output Optional Functions IDMF/HID/iClass,9 digit user ID, Wi-Fi, GPRS
- Display 3 inches TFT Screen
- Power Supply 5V DC 2A
- Dimension 180 *136 *37 mm
Expert Specs
- 3.0″ TFT LCD
- Fingerprint Capacity: 3,200
- Log Capacity: 120,000
- Communication: USB Host, USB Client, TCP/IP
- Standard Functions: DST, Self Service Query, T9 Input, Schedule Bell, SSR and Network Report
- Optional Functions: ID/MF module, UPS, ADMS
- Free Management Software
ZKTeco UF200-S Color Screen with Camera Attendance Machine Finger Print and Face ID , Tcp/IP Biometric Time Attendance and Access Control System with RFID Card
Attendance Machine Finger Print and Face ID
EXPERT FEATURES
- The face recognition time attendance machine ZKTeco UF200-S uses the central control intelligent ZKFace7.0 high-speed facial recognition algorithm.
- The recognition is accurate, fast, and the light adaptability is high, which meets the indoor full-light use conditions.
- This series has passed more than 100,000 face database tests for 2 years.
- At the same time, the algorithm also ranked among the top in the annual test of San Jose University in the United States, and received the best score in terms of user comfort.
- Based on a new hardware platform design, self-service attendance function (SSR), 2.8-inch color screen, mechanical buttons; Adopted scheme: 2 infrared headlights to increase the user's face registration comparison experience; its powerful functions and excellent performance The best choice for users in this industry!
EXPERT SPECS
|
LCD Display |
2.8-inch TFT Screen |
|
Speaker |
Voice prompt (language can be selected) |
|
Language |
English |
|
Capacity |
Fingerprint: 400 Face: 200 Transaction:50,000 |
|
Verification |
Verification speed (1:1)<=0.5s Identification speed(1:1)<=1s |
|
Identification |
FRR<=0.01%, FAR<=0.0001% |
|
Communication |
TCP/IP, USB flash |
|
Power Supply |
110/220VAC-5VDC/1A |
|
Environment |
Operation humidity:20%-80% Operation temperature:0-45 degree |
|
Package info. |
Machine size:168*30*15.5mm |
|
Standard Function |
Work code, DST, TCP/IP, USB drive, simple access control function |
Attendance Machine ZktEco K14

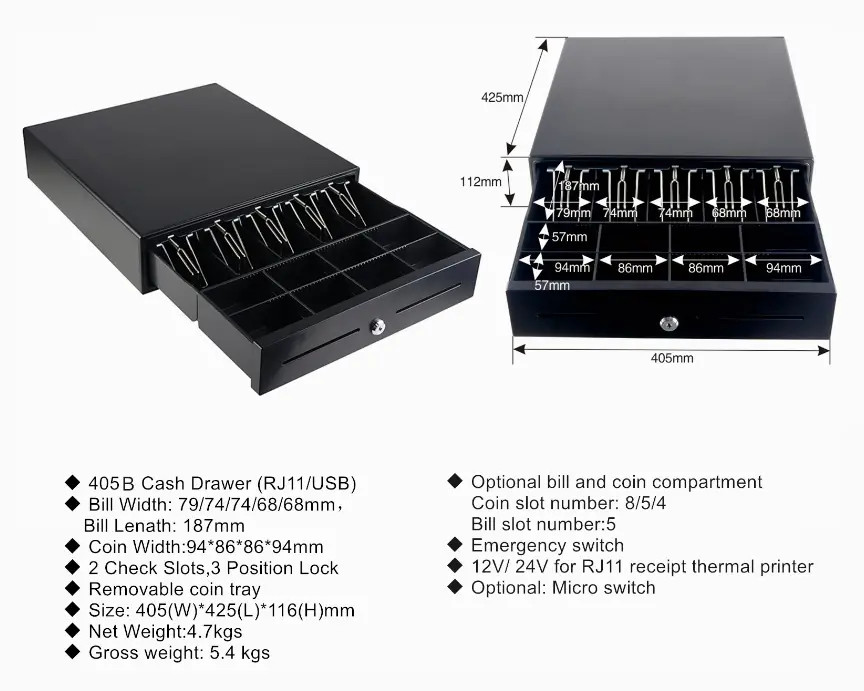

CASH DRAWER HER 405 6 BILLS NETWORK
ZKT K40 FINGER PRINT TIME AND ATTENDANCE TERMINAL
K40
ZKT K40 FINGER PRINT TIME AND ATTENDANCE TERMINAL
ZKteco K40 is an innovative biometric fingerprint reader for access control application. With high-performance firmware functions and compact design, it has become one of ZKTeco’s most popular devices, because It is works with ZKTeco’s latest firmware with user-friendly UI and flexible user privilege settings for multi-level man With optimization of both hardware platform and firmware. The device offers TCP/IP, USB host, Buitl-in battery, Simple access control or external bell, SSR report in excel forms, Supports WDMS.'
- Fingerprint Capacity 1000 (2000 without SSR )
- ID Card Capacity 1000 (Optional)
- Record Capacity 80,000
- Display 2.8-inch TFT Screen
- Communication TCP/IP, USB Host
- Standard Functions WDMS,Web Server, SMS, Automatic Status Switch,Self-Service Query, Work Code, T9
- input, 9 Digits User ID, DST, Schedule Bell
- Optional Functions ID/Mifare
- Software ZKTime.net 3.0
- Power Supply DC 12V 1.5A
- Verification Speed ≤0.5 sec
- Operating Temp. 0 °C- 45 °C
- Operating Humidity 20%-80%
- Dimension 184 × 136 × 37.6 (Length × Width × Thickness)
ZKTECO BIOPRO SA40 FINGERPRINT
BIOPRO-SA40
| Display | 2.4-inch TFT LCD Color Screen |
| Fingerprint Capacity | 3000 |
| Card Capacity | 5000(Optional) ID or mifare card |
| Transaction Capacity | 30,000 |
| Sensor | BioID Sensor/ SilkID Sensor (optional) |
| Algorithm Version | ZKFinger VX10.0 |
| Communication | RS232/485, TCP/IP, USB-host,Wi-Fi |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm |
| Wiegand Signal | Input, Output |
| Aux. Input | 1ea for linkage function |
| Functions | DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, ADMS, Printer(Optional) |
| Power Supply | 12V DC,3A |
| Operating Temperature | 0 °C- 45 °C |
| Operating Humidity | 20%-80% |
| Dimension(LxWxH) | 159.8x80.7x19.4mm |
ZKTECO TX628 FINGER PRINT TIME ATTENDANCE
FING-PRT-TX628
ZKT TX628 Attendance Machine
Features:
.Color TFT screen with GUI Interface for ease of use
.ZK Optical Sensor
.1 touch a-second user recognition
.Stores 3,200 templates and 80,000 transactions
.Reads Fingerprint and/or PINs
.Optional integrated proximity or smart card reader
.Built-in Serial and Ethernet ports
.Built-in USB port optional, allows for manual data transfer when network isn’t available
.Built in bell scheduling
.Real-time 1-touch data export 3rd party hosted & non-hosted applications
.Audio-Visual indications for acceptance and rejection of valid/invalid fingers
.SDK available for OEM customers and software developers
Specifications:
| Fingerprint Capacity | 3200 templates |
| Card Capacity | 10000 |
| Transaction Capacity | 80,000 |
| Hardware Platform | ZEM510 |
| Sensor | ZK Optical Sensor |
| Algorithm Version | ZK Finger v10.0 |
| Communication | WIFI,RS232/485, TCP/IP |
| Optional Functions | ID/MF/HID,Webserver,printer,9 digit user ID |
| Display | 3 inches TFT Screen |
ZKTeco ZK3969 Time attendance & Access Control
- User number:200 people
- Fingerprint capacity:400 pieces
- face volume:200 sheets
- recording capacity:50,000
- display:2.8-inch high-definition color screen
- Algorithm version: ZKFinger 10.0 high-speed dual-engine fingerprint recognition algorithm
- communication method: TCP/IP, USB-host
- U disk function: Support U disk high-speed upload and download
- other functions: T9 input method, simple access control, timed ringing, record query
- Operating temperature:0℃～45℃
- Use humidity:20%～80%
- Power Specifications: DC 5V 1A
- size:162*153*30mm
-
Description:
ZK3969(MB20) is a multi-biometric time attendance and access control device that supports up to 400 fingerprint and 200 face capacity. With the latest hardware platform, ZKFace and ZKFinger algorithm, it offers brand new UI and user-friendly operation interface to provide good user experience.
This device is suitable for SMB enterprises, hotels, hospitals, logistics and ect. It comes with elegant design and can support multiple languages like Englihs, Spanish, Portuguese, Arabic, Russian, etc.
Features:
◆Fingerprint Recogniton ◆Face Recognition ◆2.8″ TFT Screen ◆Self-service Report ◆Time Attendance and Access Control Function ◆USB Download, TCP/IP Communication ◆Schedule Bell
Specifications:
Model ZK3969 Display 2.8 Inch TFT Touch Screen Face Capacity 200 pcs Fingerprint Capacity 400 pcs Logs Capacity 50000 Algorithm ZKFing VX10.0 & ZKFace VX7.0 Communication USB Host, TCP/IP Schedule Bell Can set bell schedule and duration Log Check User can check logs in device by self Other Functions T9 Input, Simple Access Control, SSR report Operating Temperature 0 ℃ to 45 ℃ （ -5 °F to 122 °F ） Operating Humidity 20% to 80% Power Supply DC 5V 1A Dimension 104.8mm * 160mm * 36mm Net Weight About 0.72KG
