$ 12.00
R-FT9SLIM-BKWPN1-G

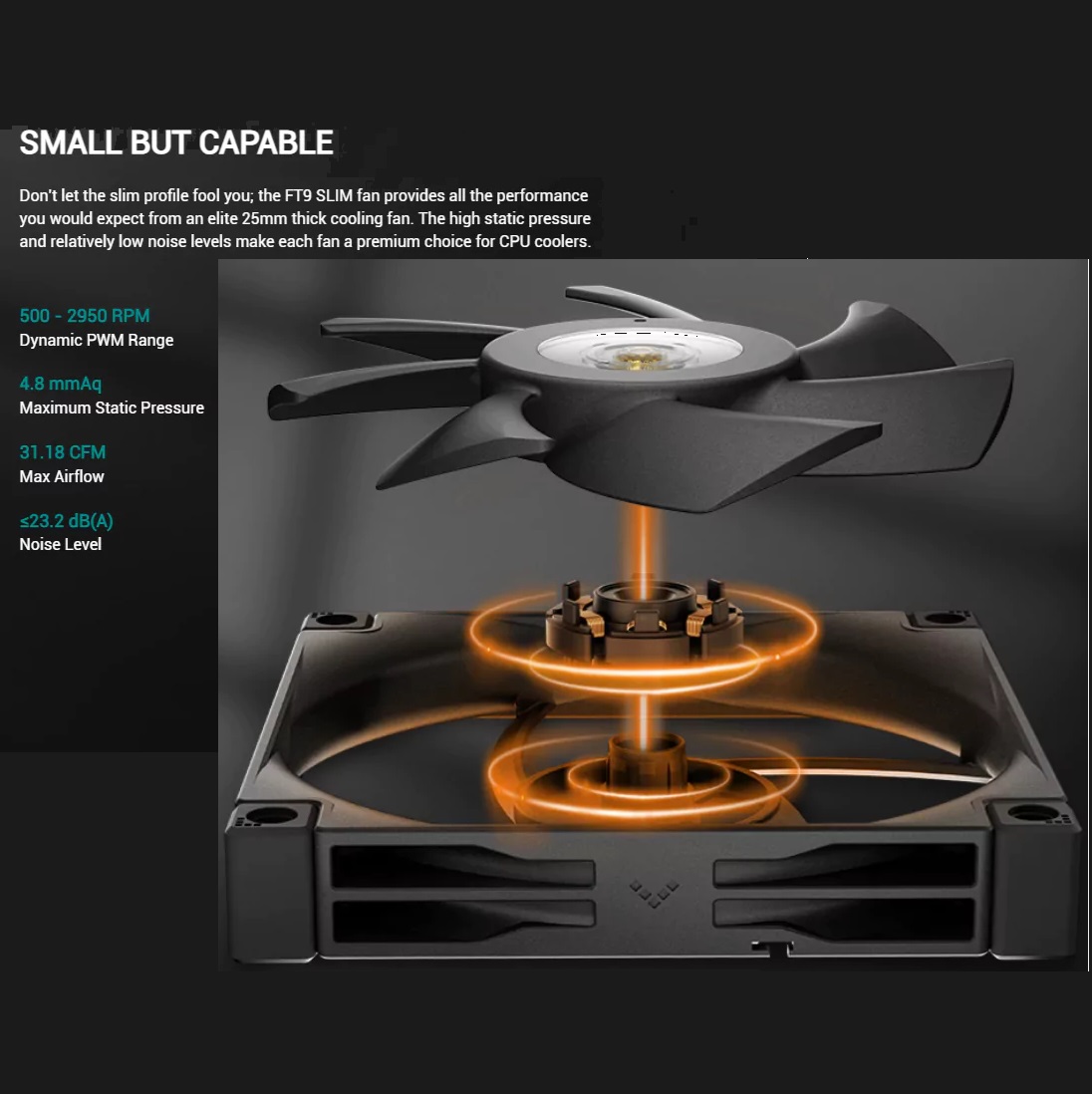

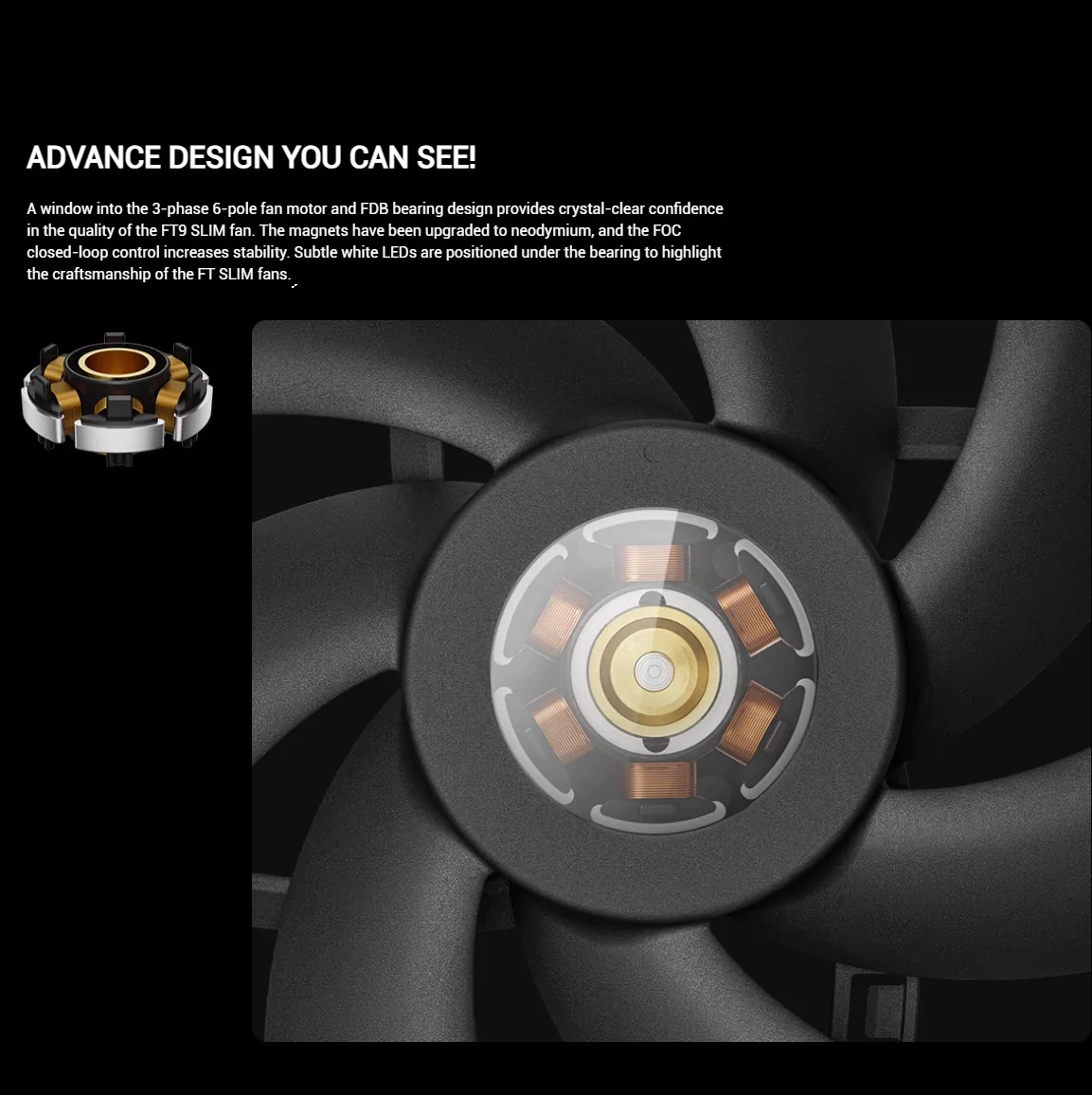

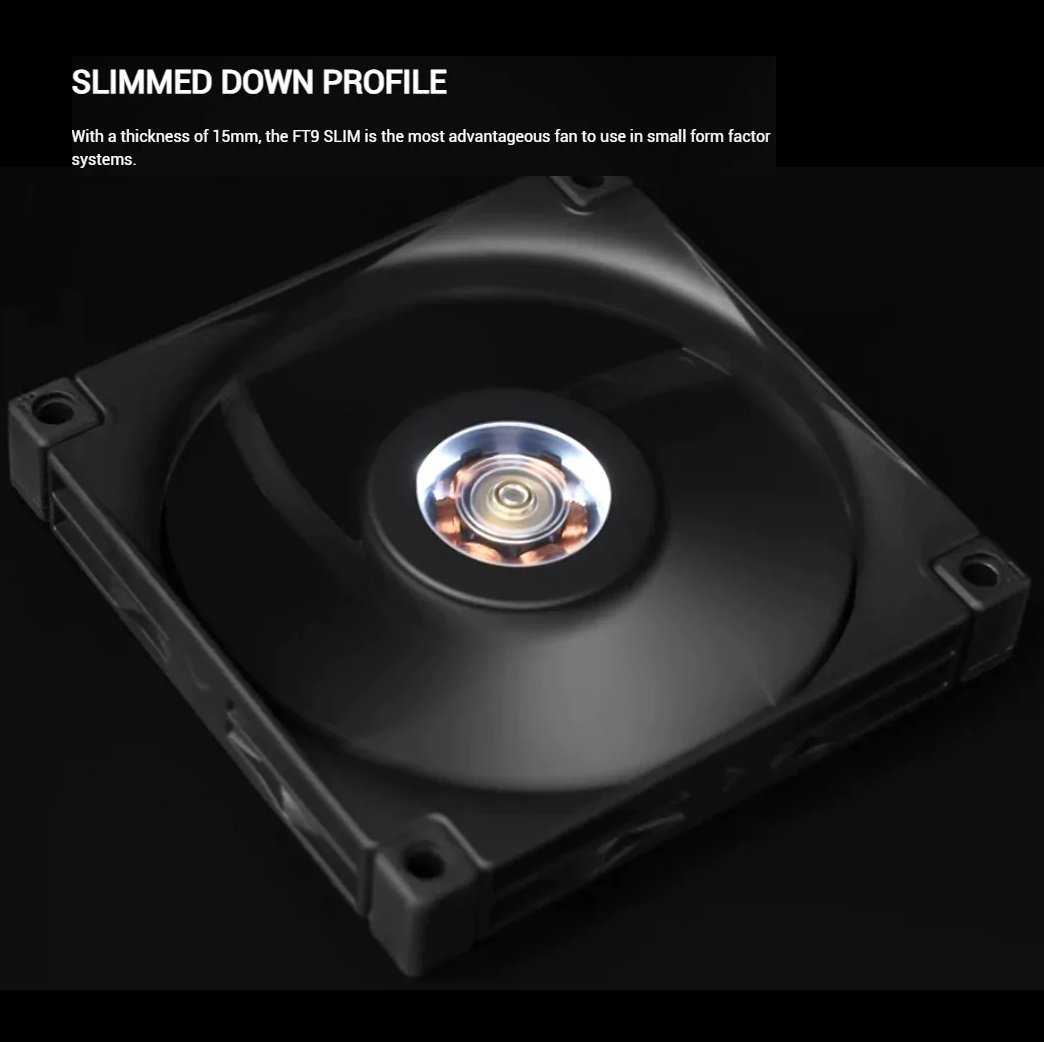

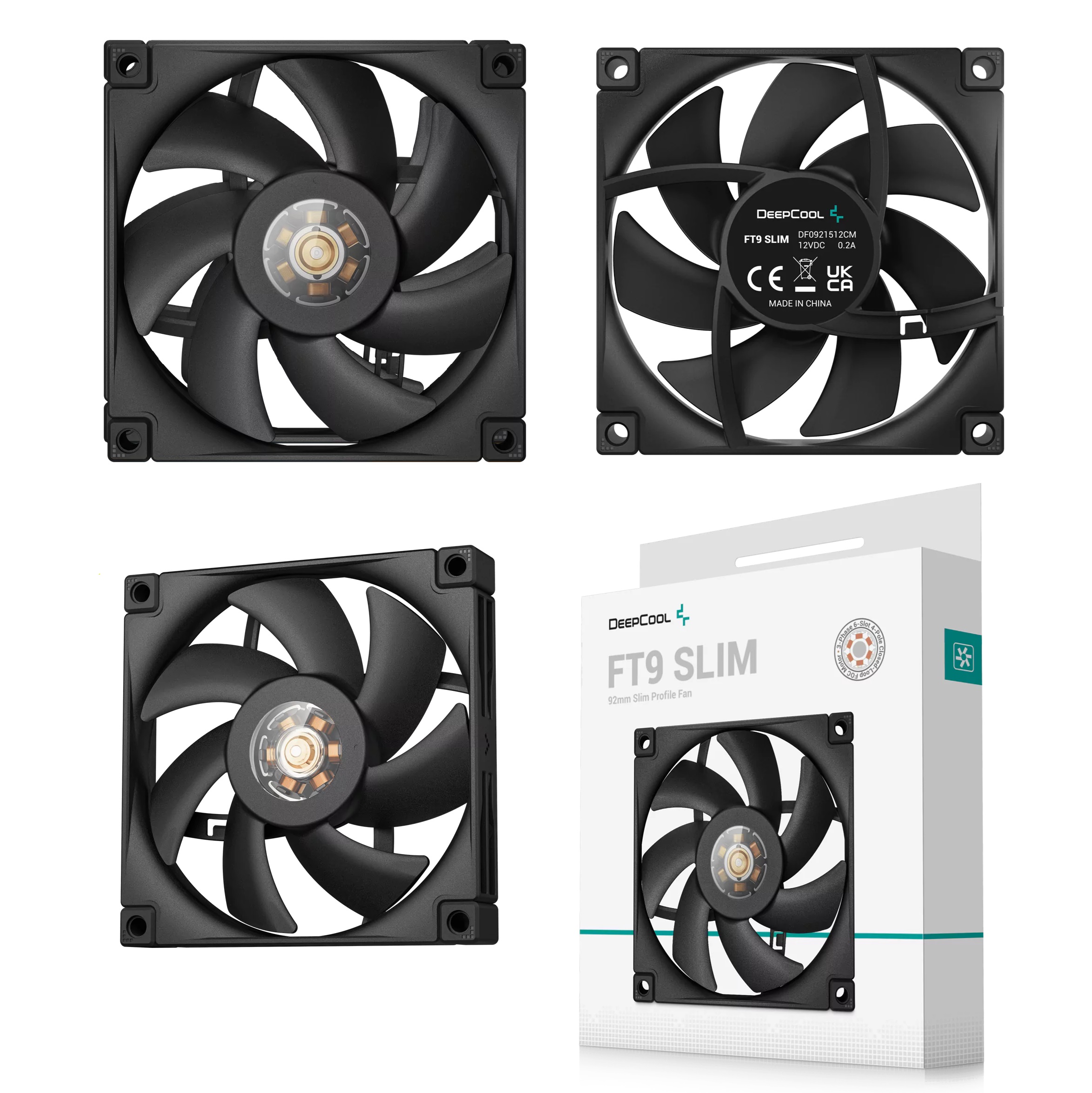

DeepCool FT9 SLIM WHITE LED 92mm PWM Case Fan
DeepCool FT9 SLIM WHITE LED 92mm PWM Case Fan ; 31.18 CFM Airflow Power ; 2950 RPM Turbocharge ; 4-pin Fan Connector ; Fluid Dynamic Bearing ; Compact 92×92×15 mm | One Single Fan ; BLACK
| VEIKK , A50 , DRAWING , TABLET , 10 |
{attribute:VEIKK , A50 , DRAWING , TABLET , 10 |
|---|
| Product Dimensions | 129×138×162 mm(L×W×H) |
| Heatsink Dimensions | 127×110×157 mm(L×W×H) |
| Net Weight | 1486 g |
| Heatpipe | Ø6 mm×6 pcs |
| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Fan Speed | 500~1850 RPM±10% |
| Fan Airflow | 68.99 CFM |
| Fan Air Pressure | 2.19 mmAq |
| Fan Noise | ≤28 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.12 A |
| Fan Power Consumption | 1.44 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) and 9-pin USB 2.0 |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 4.75 W |
| EAN | 6933412728221 |
| P/N | R-AK620-WHADMN-G |
| Product Dimensions | 428×215×431mm(L×W×H) |
| Net Weight | 6 KG |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX |
| Front I/O Ports | USB3.0×1、Audio×1、TYPE-C×1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2+1 |
| Expansion Slots | 4 Slots |
| Pre-Installed Fans | Front: 2×140mm ARGB Rear: 1×120mm ARGB |
| Fan Support | Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120mm PSU Shrouded: 2×120mm |
| Radiator Support | Front: 120/140/240/280/360mm Top: 120/140/240mm Rear: 120mm |
| CPU Cooler Height Limit | 165mm |
| GPU Length Limit | 320mm |
| Power Supply Type | ATX PS2 （maximum length: 160mm） |
| EAN | 6933412774693 |
| P/N | R-CH360-WHAPE3D-G-1 |
| Fan Dimensions | 120×120×15 mm(L×W×H) |
| Net Weight | 210 g |
| Fan Speed | 500±200 RPM-2150 RPM±10% |
| Fan Airflow | 58 CFM |
| Fan Air Pressure | 2.42 mmAq |
| Fan Noise | ≤25.6 dB(A） |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.15 A to 0.70 max |
| Fan Power Consumption | 8.4 W |
| EAN | 6933412710745 |
| P/N | R-FT12SLIM-BKWPN1-G |
| Motherboard Support | |
| Internal Drive Bays | |
| Expansion Slots | |
| Maximum GPU Length | |
| CPU Cooler Height | |
| Fans Included | |
| I/O | |
| Windowed Panel | |
| Built-In Lighting |
| Motherboard Support | |
| External Drive Bays | |
| Internal Drive Bays | |
| Expansion Slots | |
| Maximum GPU Length | |
| CPU Cooler Height | |
| Supported PSU Size | |
| Maximum PSU Length | |
| PSU Mounting Location |
| Fan Mounting | |
| Fans Included | |
| Maximum Radiator Size | |
| Fan Controller Included | |
| Filter Locations |
| I/O | |
| Audio I/O | |
| Display Outputs |
| Windowed Panel | |
| Material | |
| Built-In Lighting | |
| Cable Management Space | |
| Dimensions (W x H x D) | |
| Weight |
| Type | ATX12V V3.1 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Gold |
| Fan Size | 120mm |
| Fan Bearing | HYB(Hydro Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
Made to meet modern power supply design standards for consistent voltage stability.
PM-D power supply is also compliant with Intel PSU guidelines that support instant-on power from sleep or standby modes.
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | 230V EU White |
| Fan Size | 120mm |
| Fan Bearing | Hypro Bearing |
| Topology | Active PFC+Double tube forward |
| Capacitors | Taiwan bulk capacitor |
| Power Good Signal | 100-500ms |
| Hold Up Time | ≥16ms(75% Load) |
| Efficiency | ≥85% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP |
| Operation Temperature | 0-40°C |
| Regulatory | CB/CCC/CE/UKCA/EAC/RCM/BIS |
| Erp Regulation | ErP 2010 |
| MTBF | 100,000 Hours |
Blue & Black Color Mix
The whole body of WIND PAL MINI is in black:
Sleek Design
The crescent body and the flat metal mesh form into a perfect piece that consists of beautiful lines.
Cable Management Groove
WIND PAL MINI has a long USB power cable to connect to the notebook; and a carefully designed groove allows you to tidy up the cable when you put this into your bag.
Supporting Feet with Adjustable Angle
The gap between the supporting feet and the cooler base allows you to unfold them easily and provides you the best viewing angle to use your notebook.
14cm Blue LED Fan
WIND PAL MINI has a built-in 14cm fan to provide increased airflow to cool your notebook. With blue LED lights, this fan offers more than just cooling.
Metal Mesh Panel
The front panel is flat in metal mesh and this panel covers the whole part of the hot spots of your notebook. The honeycomb holes allow the cold air to blow the heat away quickly.
7-Degree Angle Brings You Comfortable Viewing
In order to ensure a better experience, WIND PAL MINI adopts 7-degree angle - what the industry recognizes as the most comfortable support angle. It's not only in line with the vast majority of users' viewing habits, but also in line with the spine, offering a more healthy experience.
Big Airflow for Optimal Cooling
The front panel is flat metal mesh. This panel covers the whole part of the hot spots of your notebook. The honeycomb holes allow the cold air to blow the heat away quickly.
Sleek Design
The crescent body and the flat metal mesh form into a perfect piece that consists of beautiful lines.
| Product Dimensions | 129×136×157 mm(L×W×H) |
| Heatsink Dimensions | 127×110×157 mm(L×W×H) |
| Net Weight | 1300 g |
| Heatpipe | Ø6 mm×6 pcs |
| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Fan Speed | 300~1850 RPM±10% |
| Fan Airflow | 67.88 CFM |
| Fan Air Pressure | 2.04 mmAq |
| Fan Noise | ≤29.4 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.14 A |
| Fan Power Consumption | 1.68 W |
| EAN | 6933412727613 |
| P/N | R-AG620-BKNNMN-G-1 |
