911-7D98-046
-3%

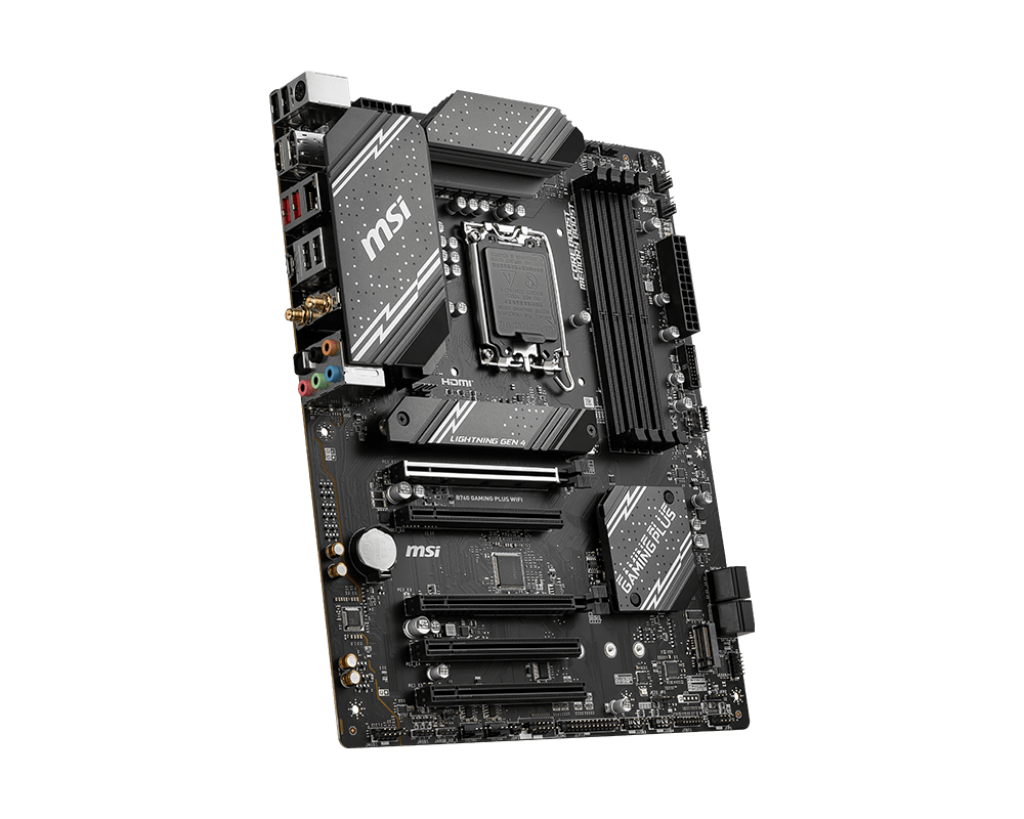

MSI B760 GAMING PLUS WIFI DDR5 MOTHERBOARD
Original price was: $ 193.00.$ 187.00Current price is: $ 187.00.
Description
Additional information
| VEIKK , A50 , DRAWING , TABLET , 10 |
{attribute:VEIKK , A50 , DRAWING , TABLET , 10 |
|---|
Related products
BIOSTAR GAMING BOARD H510MH
H510MH/E 2.0 Ver. 6.0
Socket : 1200
- Supports 10th/11th Generation Intel Core™ Processor
- Intel H510 single chip architecture
- Supports 2-DIMM DDR4- 3200/ 2933/ 2666/ 2400/2133/ 1866 up to 64 GB Memory
- Supports PCIe 4.0
- Supports PCIe M.2 3.0 (32Gb/s)
- Supports USB 3.2 Gen1
- Supports WiFi 6 module (No WiFi 6 card included)
-
CPU SUPPORT Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package * Please refer to www.biostar.com.tw for CPU support list. MEMORY Supports Dual Channel DDR4 3200/ 2933/ 2666/ 2400/ 2133/ 1866 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 4/8/16/32GB DDR4 module * Please refer to www.biostar.com.tw for Memory support list. INTEGRATED VIDEO By CPU model Supports DX12 Supports HDCP Supports HDMI 1.4 version STORAGE -- Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports 4 x SATA III Connectors (6Gb/s) 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module. Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA III (6Gb/s) SSD * When using SATA SSD module on M.2 slot (M2_PCIEG3_32G_SATA_1), the SATA_1 connector will be disabled. LAN Intel I219V 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability AUDIO CODEC ALC897 7.1 Channels, High Definition Audio USB 4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers) 8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers) EXPANSION SLOT 1 x PCIe 3.0 x1 Slot 1 x PCIe 3.0/ 4.0 x16 Slot (x16 mode) * The PCIe 4.0 only depends on Rocket Lake CPUs. REAR I/O 2 x WIFI Antenna Ports 1 x PS/2 Keyboard / Mouse 1 x HDMI Port 1 x VGA Port 2 x USB 3.2 (Gen1) Ports 4 x USB 2.0 Port 1 x LAN port 3 x Audio Jack INTERNAL I/O 4 x SATA III Connectors (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header * M.2 (E key) Wi-Fi card is not provided H/W MONITORING CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring DIMENSION Micro ATX Form Factor Dimension: 20.8 cm x 23.6 cm ( W x L ) OS SUPPORT Supports Windows 10(64bit) ※Biostar reserves the right to add or remove support for any OS with or without notice. BUNDLE SOFTWARE BullGuard ACCESSORIES 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 1 x WiFi accessories FEATURES BIOS-Flasher
TP-LINK AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter
TL-TX50E AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter
| HARDWARE FEATURES | |
|---|---|
| Dimensions | 3.7 x 4.8 x 0.8 in (95.2 x 120.8 x 21.5 mm) |
| Antenna Type | Two High-Gain Dual Band Antennas |
| Chipset | Intel Wi-Fi 6 Chipset |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/g/b 2.4 GHz Bluetooth 5.0/4.2/4.0 |
| WLAN Signal Rate | 5 GHz 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1733 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| WLAN Reception Sensitivity | 5 GHz : 11ax HT160：-56.25dBm 11ax HT80: -59dBm 11ax HT40: -62.25dBm 11ax HT20: -65dBm 11ac HT160：-62dBm 11ac HT80: -65.5dBm 11ac HT40: -69.75dBm 11ac HT20: -73.75dBm 11n HT40: -74.5dBm 11n HT20: -77.5dBm 11a 54Mbps: -77.75dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HT40: -60.75dBm 11ax HT20: -63.75dBm 11n HT40: -73dBm 11n HT20: -76.25dBm 11g 54Mbps: -76.5dBm 11b 11Mbps: -89dBm |
| WLAN Transmit Power | 5 GHz : 27dBm(FCC) 2.4 GHz : 26dBm(FCC) |
| WLAN Modes | Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| Bluetooth Profiles | Archer TX50E support the native BT profiles implemented in Windows 10. For the latest information on Windows 10 BT profiles please refer to https://support.microsoft.com/en-us/help/10568/windows-10-supported-bluetooth-profiles |
GAMDIAS BOREAS E1-410 WHITE CPU AIR COOLER
BOREAS-E1-410-WH
GAMDIAS BOREAS E1-410 WHITE CPU AIR COOLER
White Edition
High Airflow PWM Fan
4 Copper Heat Pipes with Direct Contact Technology
Customize addressable RGB lighting via motherboard manufacturer sync software
Built-in rainbow wave LED effect
High Cooling Performance Thick Base Plate
Hydraulic Bearing
Universal Socket Mounting Kits
AIR COOLER - FAN
- Fan Dimensions120 x 120 x 25 mm
- Fin MaterialAluminum
- Fan Speed800-2000 RPM ±10%
- Air Flow70.2CFM
- Air Pressure2.7 mmH2O
- Noise Level10-31 dBA
- BearingHydraulic
AIR COOLER
- Heatpipe MaterialCopper
- Product Dimensions120 x 73.8 x 154.5 mm
- Connector4 Pin PWM
- Rated Voltage12 V (Fan) / 5V(LED)
- Support Motherboard RGB Sync Connectors5V 3-pin Addressable (Digital) RGB Header
- CompatibilityLGA2066 / 2011-v3 / 2011 / 1700 / 1151 / 1150 / 1155 / 1156 / 1366 / 1200 / AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
1850W ATX Modular Mining PC Power Supply 6 GPU
T.F.SKYWINDINTL 1800w Power Supply RX480 PSU Asic Bitcoin Miner Power Supply 1800W Atx Pico PSU Mining ETH ETC XMR ZEC BTB BTC
INTERFACE
20+4P *1
CPU 4+4P *1
6+2P* 12
IDE* 5
SATA *8
Features:
1.Support 6 pieces graphics card(Power is lower than 1800W)
2.1800W power supply, high efficiency,very quiet,stable performance.
3.With new big capacitor and big magnetic ring material, the performance is very stable.
4:with one year warrety
Package :
1800w psu *1
power tester *1
power cord *1
Please pay attention :
1: this psu is design forminer Mining,it can be used in normal computer but it will a little noisy when you use in normal computer , if you want a very quiet computer psu , do not buy this one and contact our sales to advise you one .
DeepCool LS520 SE Liquid Cooler 240mm 4th Gen Dual-Chamber Pump 3100RPM 280w TDP AIO CPU Cooler with ARGB Fans – WHITE
DeepCool LS520 SE Liquid Cooler 240mm ARGB
EXPERT FEATURES
- The 4th generation pump’s microchannel design optimizes coolant flow, while the three-phase brushless motor is rated up to 3100 RPM. A thick, pure copper plate maximizes overall cooling efficiency.
- A mirror-plated top cover with a narrow frame captures an infinite reflection of 16 RGB LEDs for a vibrant visual effect. The smooth aluminum housing adds a premium finishing touch and a lustrous shine.
- Keep your cool with 120mm ARGB PWM fans that beat the heat with maximum static pressure and powerful airflow. An included low-speed adapter reduces maximum noise by up to 10dB for ultimate silence.
- Featuring DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure, leading to a longer useful life.
- Sturdy mounting brackets are included for both Intel and AMD sockets that are easy to install.
EXPERT SPECS
Application For
- Intel : LGA1700/1200/1151/1150/1155
- AMD : AM5/AM4
| Net Weight | 1346 g |
Radiator Dimensions |
282×120×27 mm(L×W×H) |
| Radiator Material | Aluminum |
| Tube length | 410 mm(L×W×H) |
| Pump Dimensions | 85×73×55 mm(L×W×H) |
| Pump Speed | 3100 RPM±10% |
| Pump Noise | 19 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.38 A |
| Pump Power Consumption | 4.56 W |
| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Fan Speed | 500~2250 RPM±10% |
| Fan Airflow | 85.85 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | ≤32.9 dB(A) |
Fan Speed (with LSP) |
500~1600 RPM±10% |
| Fan Airflow (with LSP) | 60.85 CFM |
| Fan Air Pressure (with LSP) | 1.65 mmAq |
| Fan Noise (with LSP) | ≤28.2 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.25 A |
| Fan Power Consumption | 3.0 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.7 W（PUMP）/ 2.1 W（FAN×2） |
| EAN | 6933412727989 |
| P/N | R-LS520-WHAMMM |
CPU AMD Ryzen 5 7600X – 6-Core 4.7 GHz – Socket AM5 – 105W Desktop Processor – 32MB L3 Cache – with AMD Radeon Graphics controller
CPU AMD Ryzen 5 7600X Radeon Graphics
Expert Features & Specs
- Brand : AMD
- CPU Manufacturer : AMD
- CPU Model : Ryzen 5
- CPU Speed : 4.7 GHz
- CPU Socket : Socket AM5
- The Socket AM5 socket allows processor to be placed on the PCB without soldering
- Ryzen 5 product line processor for your convenience and optimal usage
- 5 nm process technology for reliable performance with maximum productivity
- Hexa-core (6 Core) processor core helps processor process data in a dependable and timely manner with maximum productivity
- 6 MB L2 plus 32 MB L3 cache memory provides excellent hit rate in short access time enabling improved system performance
- Processor with 4.70 GHz clock speed for quick and dependable processing of data to ensure maximum productivity
- Comes with AMD Radeon Graphics controller for amazing graphics output
NZXT H510 – CA-H510B-W1 – Compact ATX Mid WHITE
From the manufacturer
H510
COMPACT MID-TOWER ATX CASE
The H510 and H510i compact mid-tower ATX cases are both stunning and an excellent value. Perfect when you want a small-footprint ATX case without sacrificing features. A removable radiator mounting bracket, flush tempered glass window, multiple fan filters, and front USB 3.1 Gen 2 type-C are just some of the amenities.
- Includes USB 3.1 Gen 2-compatability and USB-C connector.
- Everything builders loved in the original H Series alongside incredible updates.
- Cable-routing kit and pre-installed channels make wiring easy.
- Tempered glass side panel now installs with a single thumb screw.
- Clean, modern design with uninterrupted tempered glass.
|
|
|
|---|---|---|
MORE MODERNWith a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC. |
STILL BEAUTIFULThe clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build. |
ENJOYABLE BUILDS FOR ALLCable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring. |
Lexar NM620 M.2 2280 PCIe Gen3x4 NVMe 512GB Internal SSD, Up to 3500MB/s Read & 3000MB/s Write Speeds, 3D NAND for PC Enthusiasts and Gamers (LNM620X512G-RNNNG) BLACK
M.2 2280 PCIe Gen3x4 NVMe 512GB Internal SSD
LNM620X512G-RNNNG
M.2 2280 PCIe Gen3x4 NVMe 512GB Internal SSD
Lexar NM620 M.2 2280 PCIe Gen3x4 NVMe 512GB Internal SSD, Up to 3500MB/s Read & 3000MB/s Write Speeds, 3D NAND for PC Enthusiasts and Gamers (LNM620X512G-RNNNG) BLACK
EXPERT FEATURES
Next-Level performance for intensive workloads
- Designed for intensive workloads, the Lexar NM620 M.2 2280 PCIe Gen3x4 NVMe SSD offers next-level performance that puts you in the computing fast lane with speeds up 3500MB/s read and 3000MB/s write1.
- It’s supported by the PCIe Gen3x4 NVMe 1.4 technology standard and built with the latest 3D NAND flash.
Ideal for demanding creative and gaming
- With speeds of up to 3500MB/s read, enjoy 6x the speed of SATA SSDs3.
- The NM620 puts you in the computing fast lane and offers impressive performance for demanding creative workstations and gaming experiences.
Features LDPC for added reliability
- Low-Density Parity Check (LDPC) technology makes data transfers more reliable than ever by fixing data errors before they have a chance to slow you down.
Built to last
- Unlike traditional hard disk drives, the NM620 SSD has no moving parts, so it’s built to last.
- On top of that, it’s also shock and vibration resistant2, making it one robust and reliable SSD.
Efficient
Reduced power consumption and cooler operation makes the battery life last longer than a traditional hard drive.Rigorously Tested
- All Lexar products undergo extensive testing in the Lexar Quality Labs, facilities with thousands of different cameras and digital devices to ensure performance, quality, compatibility, and reliability.
- Form Factor : M.2 2280
- Interface : PCIe Gen3x4
- Performance : 512GB —sequential read up to 3500MB/s, write up to 3000MBs IOPS: up to 300/256K
- Operating Temperature : 0°C to 70°C (32°F to 158°F)
- Storage Temperature : -40°C to 85°C (-40°F to 185°F)
- Dimension (L x W x H) : 80 mm x 22 mm x 2.25 mm / 3.15” x 0.87” x 0.09”
- Weight : 9g
- Shock Resistant : 1500 G, duration 0.5ms, Half Sine Wave
- Vibration Resistant : 10~2000Hz, 1.5mm, 20 G, 1 Oct/min, 30min/axis(X,Y,Z)
- NAND flash : 3D TLC
- MTBF : 1,500,000 Hours
LNM620X512G-RNNNG
M.2 2280 PCIe Gen3x4 NVMe 512GB Internal SSD
Lexar NM620 M.2 2280 PCIe Gen3x4 NVMe 512GB Internal SSD, Up to 3500MB/s Read & 3000MB/s Write Speeds, 3D NAND for PC Enthusiasts and Gamers (LNM620X512G-RNNNG) BLACK
