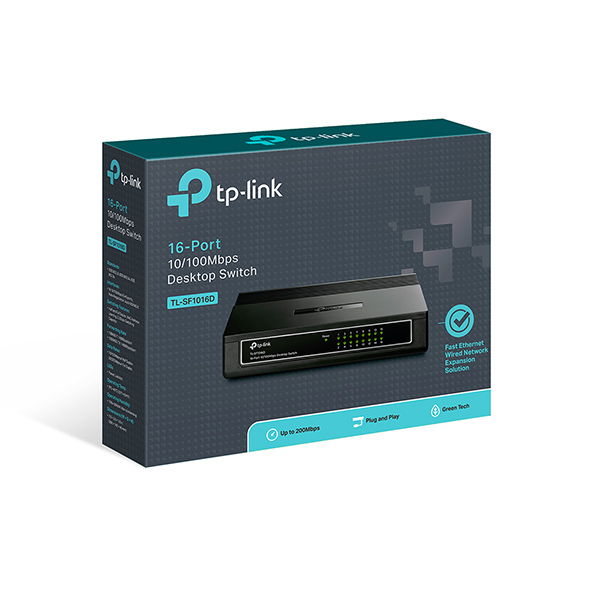

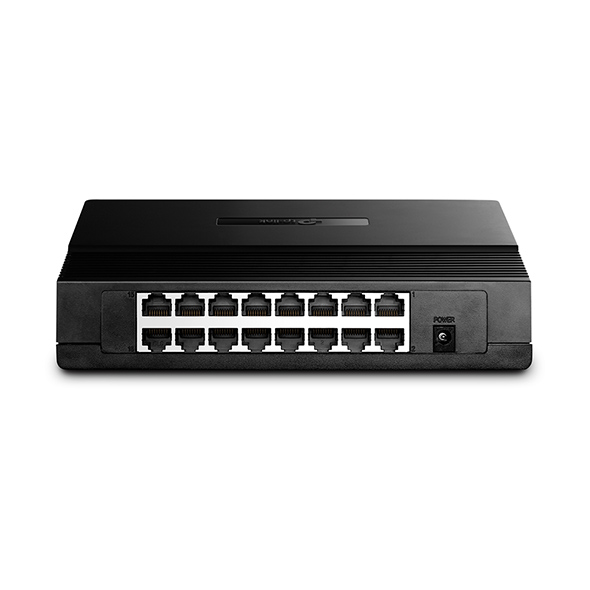

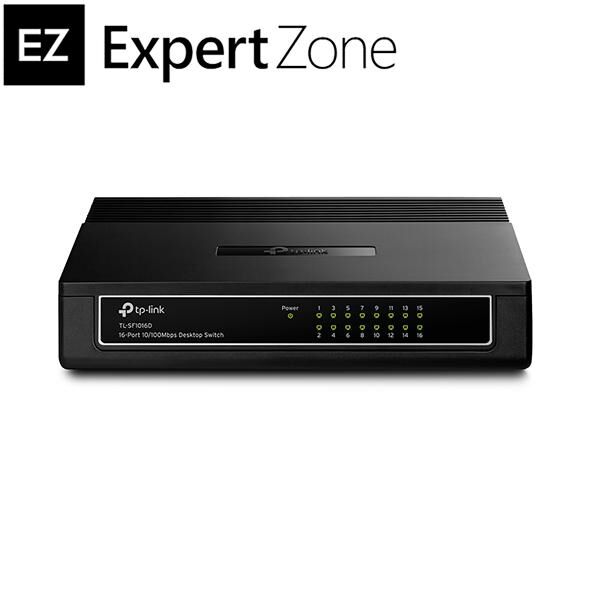

TPLINK 16-Port 10/100Mbps Desktop Switch TL-SF1016D
Additional information
Related products
TP LINK JETSTREAM 16-PORT GIGABIT SMART SWITCH WITH 2 SFP SLOTS
TL-SG2218
JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots
- Full Gigabit Ports: 16× gigabit RJ45 ports and 2× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
| HARDWARE FEATURES | |
|---|---|
| Interface | • 16× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP Slots |
| Fan Quantity | Fanless |
| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 12.3 W |
| Max Heat Dissipation | 42.0 BTU/hr |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.8 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| L2 and L2+ Features | • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect • Loopback Detection - Port-based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both |
| L2 Multicast | • Supports 511 (IPv4, IPv6) IGMP groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MVR • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN | • VLAN Group - Max 4K VLAN Groups • 802.1q Tagged VLAN • MAC VLAN: 12 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLAN |
| Access Control List | • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLAN |
KVM Switch HDMI 4 port Boxes, 4K@30hz USB KVM HDMI Console for 4 Computers sharing Keyboard Mouse and HD Monitor with 4 pack – 2in1 KVM Cables + Desktop Selector Included
KVM Switch HDMI 4 port Boxes
| Operation mode | Manual |
| Contact type | Normally Open |
| Connector type | hdmi,usb |
| Brand | MT-VIKI |
| Item dimensions L x W x H | 11 x 6 x 1 centimetres |
| Circuit type | 2-way |
| International protection rating | IP54 |
| Controller type | Push Button |
| Control method | Remote |
| Connectivity protocol | Bluetooth |
|
|
Expert Features
4 port KVM switch HDMI
- Allows you to control 4 computers by only 1 set( monitor, keyboard, mouse).
- It can also share USB speaker, U disk or printer and USB 2.0 devices).
- Also support Bluetooth keyboard & mouse with a USB receiver, 3D & EDID.
Compatibility:
- This kvm switch 4 computers supports plug and play, no software required.
- Driver-free for Windows 11/10/8/8.1/7/Vista/XP and Mac OS, Linux.
Package includes:
- 1x KVM hdmi switch 4 ports, 1x Desktop selector, 1x Manual, 4 x special USB and HDMI cable (2in1, 4ft/1.2m), which makes your desk no more mess .
- Please plug the special HDMI cable/ USB pigtail into computer port.
Includes:
- Four 2in1 professional hdmi/usb KVM cables included, no cable mess up.
- Two switch options: extended desktop selector & pannel button.
- 4 port KVM switch x1 pcs
- MT-HK04
- 1.5M KVM cable x4 pcs
- Desktop controller x1 set
- User manual x1.
FROM THE MANUFACTURER
4 ports KVM switch with USB port for sharing 1 printer
- ►Upgrade1: MT-HK04 HDMI KVM switcher with wired desktop control (Switching by Button or Desktop control). Built with additional USB Hub.
- ►Upgrade2: the only one to come with 2in1 HDMI KVM cable, not 2 separated cables, no worry for cables mess.
- ►Plug and play, support hot-plug
- ►Upgrade3: Resolution up to 4K @30Hz/ 3840*2160, support 3D,1080P. And EDID storage switch, make sure the best transmission.
- ► Compatible with: Dos, Win3.X/ Win98/ 98SE/ 2000/ ME/ 2003/ 2008/ XP/ IOS/ MAC, Win7/ Win8/ WinNT/ Netware/ Unix/ Linux, applicable to XBox 360, XBox One, PS3 / PS4, Blu-Ray DVD player, TV, Route Roku.
- ►Packing: 4 port KVM switch x1 pcs, MT-HK04，1.5M KVM cable x4 pcs, Desktop controllerx1 set, User manual x1. (If wanna get longer cable please search ASIN: B09KTLMHK7 )
HDMI KVM Switch 4K 30Hz
This product is a compact 4-port KVM switch that lets you access and control 4 desktop, laptop or netbook computers. You can share a single USB keyboard, USB mouse and HDMI monitor with both systems, saving space on your desk and using your preferred display, keyboard and mouse with both computers.Features
- Support USB2.0 for any device EDID storage switch, make sure the best transmission
- Support super widescreen display
- Support Microsoft smart mouse Logitech network mouse
- Compatible with Windows series, Mac OS. Linux system
- Excellent image quality, resolution up to 3840*2160/30Hz
- Switching mode: panel switch, desktop controller Under normal operation of the computer, no need to turn off KVM switch and computer to plug or unplug the connected computer Used for online games, hard disk video recorder, computer room server, Mini MAC
TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+, Plug and Play, Auto Recovery, Silent Operation , Long Range 250m , Traffic Separation (LS109P)
TP-Link 9-Port Switch with 8-Port PoE+
EXPERT FEATURES
- TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+.
- It is designed for small businesses and home offices that need to connect a variety of devices, such as computers, printers, IP cameras and VoIP phones.
- 63 W PoE Budget: Eight 10/100 Mbps 802.3af/at-compliant PoE ports easily connect and power fixed devices like IP cameras, access points and IP phones via a single cable.
- Up to 30 W PoE output is supported by each PoE port.
- Up to 250 m PoE Transmission: with Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering and isolate broadcast storms.
- Plug and Play: Simply plug and play for instant connectivity with no configuration required.
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
TPLINK JETSTREAM 24 PORT GIGABIT L2+MANAGED SWITCH WITH 4 SFP SLOTS
TL-SG3428
| HARDWARE FEATURES | |
|---|---|
| Interface | • 24× 10/100/1000 Mbps RJ45 Ports • 4× Gigabit SFP Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Quantity | Fanless |
| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | • V1: 19.22 W (110 V/60 Hz) • V2: 19.9 W (220 V/50 Hz) |
| Max Heat Dissipation | • V1: 65.58 BTU/hr (110 V/60 Hz) • V2: 67.73 BTU/h (220 V/50 Hz) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| MAC Address Table | • V1: 8K • V2 and above: 16K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| L2 and L2+ Features | • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect • Loopback Detection - Port-based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both |
| L2 Multicast | • Supports 511 (IPv4, IPv6) IGMP groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MVR • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN | • VLAN Group - Max 4K VLAN Groups • 802.1q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLAN |
| Access Control List | • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLAN |
GVISION 10/100/1000M Uplink Port switch poe support switch poe reverse and poe switch 8 port
1*10/100/1000M Uplink Port switch poe support switch poe reverse and poe switch 8 port
PRODUCT INTRODUCTION:
RPOE switch has intelligent device Power management features solving a major problem of powering the device for internet service provider.
This switch can be powered using remote power from customer using specially designed POE injector or any standard POE injector(24v DC,0.75amp).
This eliminates the needs of arranging power at building top (ups not require/No need to pay more money to customer or society).This saves lot of money of ISPs and improves uninterrupted service to the customer.
PRODUCT FEATURE:
REVERSE POE TECHNOLOGY:7Port 10/100+ 1G Reverse POE switch which has latest generation of fast Ethernet reverse POE switching technology. It contains 7*10/100 base T Reverse Poe ports (RPOE),1*10/100/1000 Base date Uplink Port&12V DC out for Powering ONU.
Supports Auto-Negotiation: Each of the ports automatically detect whether connected network devices are running at 10Mbps or 100Mbps (Up-link Port is 1000Mbps) and half-duplex or full-duplex mode, and adjusts the speed and mode accordingly ensuring easy and hassle-free operation.
Supports Non-blocking Wire Speed: The switch forwards and receives traffic seamlessly with its Non-blocking wire- speed. Every port of the Switch supports speeds up to 200Mbps(Up-link Port is 2000Mbps)in full-duplex mode simultaneously, providing full wire speed to connected devices and allowing you to run a high speed network smoothly.
Cascading support: switches can be cascaded for more users per Building (Up to 1 Main+3 switches )
Port base Isolation u/Hardware VLAN: The feature of Port Isolation is implemented in this unit where in the Ethernet Date of the Uplink Port can be transferred to any of the Downlink ports but the individual Downlink ports cannot communicate with each other.
Over voltage Protection: Over voltage Protection is provided on each date port to eliminate damage due to connection of higher voltage(Higher than 24V DC. Up to 30V DC). By mistake if user connect more than 24V POE injector then switch will goes on power off mode and will start working again once this high voltage source is removed.
Over current Protection: We have provided over current protection on each port to prevent damage to the switch in case of high current flowing due to any reason. This is provided using Resettable Fuse to facilitate easy maintenance and avoiding frequent change of blown fuse.
PRODUCT APPLICATION:
7*10/100 Base T Reverse POE Ports(RPOE) & 1*10/100/1000 Base T Uplink Port & 12V DC Power out for Powering ONU
PRODUCT SPECIFICTAION:
| Product | RPOE 7*10/100M+1*1000M 12V2A out |
| Ethernet Connector | RJ45 Jacks(8 Ports)10/100Base-TX with Auto-MDIX |
| 1*10/100/1000M Base T Data Uplink Port(port 1) | |
| 7*10/100 Base-Reverse POE Ports(Port 2to 8)Data + Power in | |
| standards | IEEE STD. 802.3 10BASE T 10Mbps,Half/Full Duplex IEEE STD. 802.3U 100BASE-TX,10/100Mbps,Half/Full Duplex IEEE STD.802.3X FLOW CONTROL AND BACK PRESSURE IEEE STD.802.3AZ Energy Efficient Ethernet |
| Protocols | CSMA/CD |
| Transmission Method | Store and forward |
| MAC ADDRESS | Support 8k MAC address |
| Packet Buffer | |
| Maximum Forwarding Packet Length | Supports 9216-byte jumbo packet length forwarding at wire speed |
| Filtering/Forwarding Rates | 1000Mbps Port – 148800pps 100Mbps Port – 14880pps 10Mbps Port – 14880pps |
| Network Cable | 4-pair UTP/STP Cat 5 cable |
| LEDs | Link/Activity per Ethernet port Power: On/Off for switch |
| Power Over Ethernet injector: Power Supply(IN) | Power over Ethernet 24V @ 18W on SPARE pair ( to supply power to the HDV switch as well as a compatible POE device(e.g. CPE) |
| No. of Ethernet Ports that can Power On the Switch & ONU | Any one /all of the seven Downlink Ports |
| Power Over Ethernet | Power over Ethernet injector on Four Pair Cable |
| DC Out | 12V/2A DC OUT THROUGH DC jack for powering other Device like ONU |
| Ethernet Devices that can be powered | Single |
| CAT-5 Cable Date Lines | Pair 1:Pins 1/2,Pair 2:Pins3/6 |
| CAT-5 Cable Power Lines | +VDC: Pins 4/5,-VDC:Pins 7/8 |
| Power consumption | 5 Watt (Poe injector) / 2 Watt (Switch) |
| Operating Temperature | 0℃to 50℃ |
| Storage environment | 0℃ to 75℃ |
| Operating Humidity | 20% to 95% (non-condensing) |
| Dimension of Switch | 125mm*70mm*25mm |
| Weight of Switch | 0.45KG |
