-7%

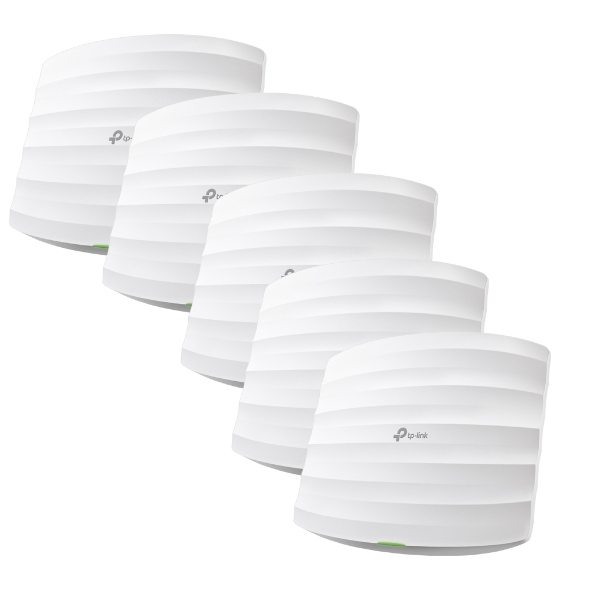

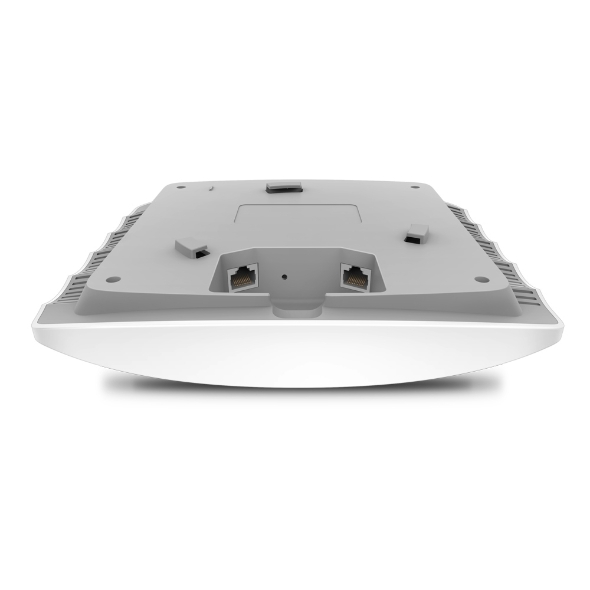

TPLINK EAP245 AC1750 WIRELESS DUAL BAND CEILING MOUNT ACCESS POINT
Original price was: $ 135.00.$ 125.00Current price is: $ 125.00.
Additional information
Related products
TPLINK JETSTREAM 24 PORT GIGABIT L2+MANAGED SWITCH WITH 4 SFP SLOTS
TL-SG3428
| HARDWARE FEATURES | |
|---|---|
| Interface | • 24× 10/100/1000 Mbps RJ45 Ports • 4× Gigabit SFP Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Quantity | Fanless |
| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | • V1: 19.22 W (110 V/60 Hz) • V2: 19.9 W (220 V/50 Hz) |
| Max Heat Dissipation | • V1: 65.58 BTU/hr (110 V/60 Hz) • V2: 67.73 BTU/h (220 V/50 Hz) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.66 Mpps |
| MAC Address Table | • V1: 8K • V2 and above: 16K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| L2 and L2+ Features | • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect • Loopback Detection - Port-based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both |
| L2 Multicast | • Supports 511 (IPv4, IPv6) IGMP groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MVR • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN | • VLAN Group - Max 4K VLAN Groups • 802.1q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLAN |
| Access Control List | • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLAN |
MIKROTIK ETHERNET ROUTER L009UIGS-RM
MIKROTIK Ethernet Router L009UiGS-RM
1x SFP port (2.5G supported) | 8x Gigabit LAN ports (Ether8 has Passive PoE out) | 1x Serial console port (RJ45) | 1x Full size USB 3.0 type A | 2 core CPU | Can be powered in 2 different ways (DC jack, PoE-IN) | RouterOS (Licence level 5)
L009UiGS-RML009 is more than just a router. This product line is up to 4 times faster than RB2011, it has a modern ARM CPU with container support, an innovative enclosure that allows mounting up to four routers in a single 1U space, more RAM, PoE, and 2.5G SFP support. This version comes with 1U rackmount accessories.
The legendary RB2011 product line has provided affordable, flexible, and robust connectivity for over a decade. In fact, it was our very first router with SFP. Finally, it’s time for an upgrade. But don’t worry: we’ve kept and improved all the key elements and features of the beloved RB2011. Even the red color scheme and the appealing price!
Included in the box
- 1x L009UiGS-RM
- 1x 24V 1.5A power supply
- 1x Fastening set K-52
- 1x Rackmount kit K-79
Specifications
Interfaces
RJ45 Ports
(8) 1 Gbps
Number of PoE Ports
1 pcs
PoE Out Standards
Passive PoE
SFP Ports
(1) 1G SFP
USB Ports
(1) USB-A 3.0
System Specification
Chipset
Dual-Core IPQ-5018 800 MHz
RAM
512 MB
Storage Memory
128 MB
Power
Power Method
AC/DC Adapter, 802.3af PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
24 - 56 V DC
Max Power Consumption
37 W
PSU / POE adapter
24 V DC 1.5 A
Physical Parameters
Dimensions
220 x 125 x 22 mm
Operating Temperature
-40 °C to 70 °C
Package Contains
External Power Supply
Included
Software
MikroTik
RouterOS Level 5
TPLINK TX401 10 GIGABIT PCIE NETWORK ADAPTER
TX401
- 10 Gbps Networking - Combined with the latest 10GBase-T Technology, TX401 delivers extreme speeds of up to 10 Gbps, which is 10× faster than typical Gigabit adapters, guaranteeing smooth data transmissions for both internet access and local data transmissions.†
- Versatile Compatibility - With extreme speed and ultra-low latency, 10GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.
- CAT6A Ethernet Cable - To maximize TX401's performance, a 1.5 m CAT6A Ethernet Cable is included—rated for up to 10 Gbps while a regular cable is only rated for 1 Gbps.
- Low-Profile and Full-Height Brackets - In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
| Interface | 1× PCI Express 3.0 x4, 1× RJ45 Gigabit/Megabit Port |
|---|---|
| Network Media | 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX |
| LED | 10 Gbps Link/Act, 5 / 2.5 / 1 Gbps and 100 Mbps Link/Act |
| Data Rates | 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps for Half-Duplex mode, 200 Mbps, 2 Gbps, 5 Gbps, 10 Gbps, 20 Gbps for Full-Duplex mode |
| Dimensions | 120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in) |
| Flow Control | 802.3x |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | 10 Gigabit PCIe Network Adapter (TX401) Standard/Low-Profile Brackets Quick Installation Guide Resource CD 1.5 m CAT6A Ethernet Cable |
| System Requirements | Windows 11/10/8.1/8/7, Windows Servers 2019/2016/ 2012 R2, Linux |
TPLINK OMADA EAP110-OUT 300MBp WIRELESS N OUTDOOR ACCESS POINT
EAP110-OUT
EAP110-Outdoor
N300 Wireless N Outdoor Access Point
- Built for outdoor Wi-Fi applications
- Up to 300Mbps1 Wi-Fi with 2x2 MIMO technology
- High transmission power and high gain antennas provide a long-range coverage area
- Durable, weatherproof enclosure to withstand fair and foul weather
- Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
- Auranet Controller Software lets administrators easily manage hundreds of EAPs
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 × Fast Ethernet (RJ-45) Port (Support Passive PoE) |
| Button | Reset |
| Power Supply | 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | 3.1 W |
| Dimensions ( W x D x H ) | 8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm) |
| Antenna Type | 2 × 3dBi External Omni waterproof |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole or wall mounting (mounting kit included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11n/g/b |
| Frequency | 2.4GHz |
| Signal Rate | 11n: Up to 300Mbps* 11g: Up to 54Mbps* 11b: Up to 11Mbps* |
| Transmit Power | < 27dBm |
| Wireless Functions | Multiple SSIDs (Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (adjustable on 1 dBm step) QoS (WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID, AP, and Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local and Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
Gigabit Ethernet Fiber Media Converters, a pair of 10/100/1000M RJ45 to 1000M Bi-Directional Single-Mode SC Fiber
- Optical Port: 1.25Gbps, 1310nm/1550nm, Single-Mode SC Optic Fiber UP TO 3K
- RJ45 Port: Auto-detective 10M/100M/1000Mbps Cat5 Cable
- Complies with IEEE IEEE 802.3/802.3u/802.3z/802.3ab
- Connect the power cord to the Converter and check that the Power LED lights up. The TP Act and FX Act LEDs will turn on when all the cable connections satisfied
- What In Box: A pair of Ethernet Media Converter, 2x DC Power Adapter, 1x Product Manual.
