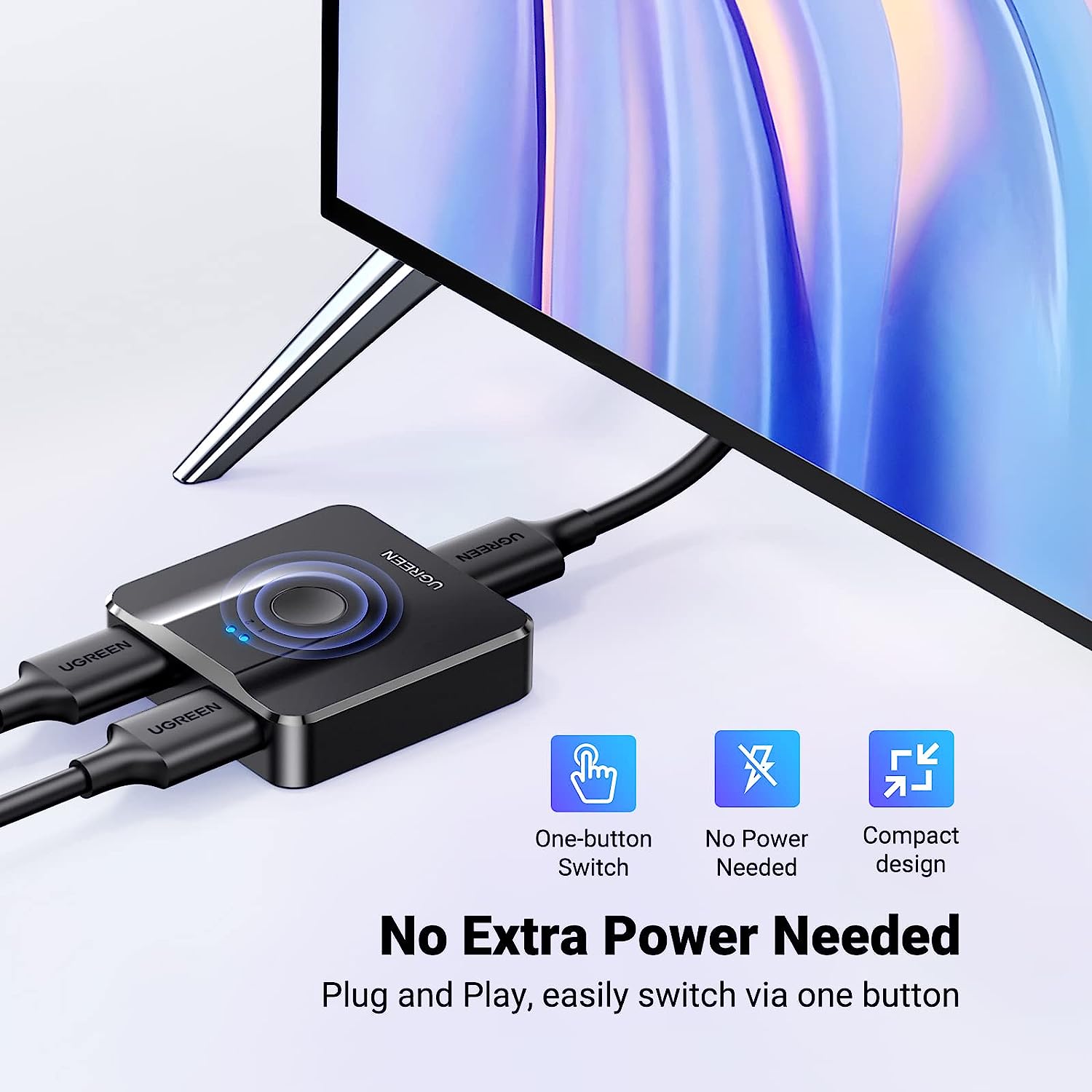

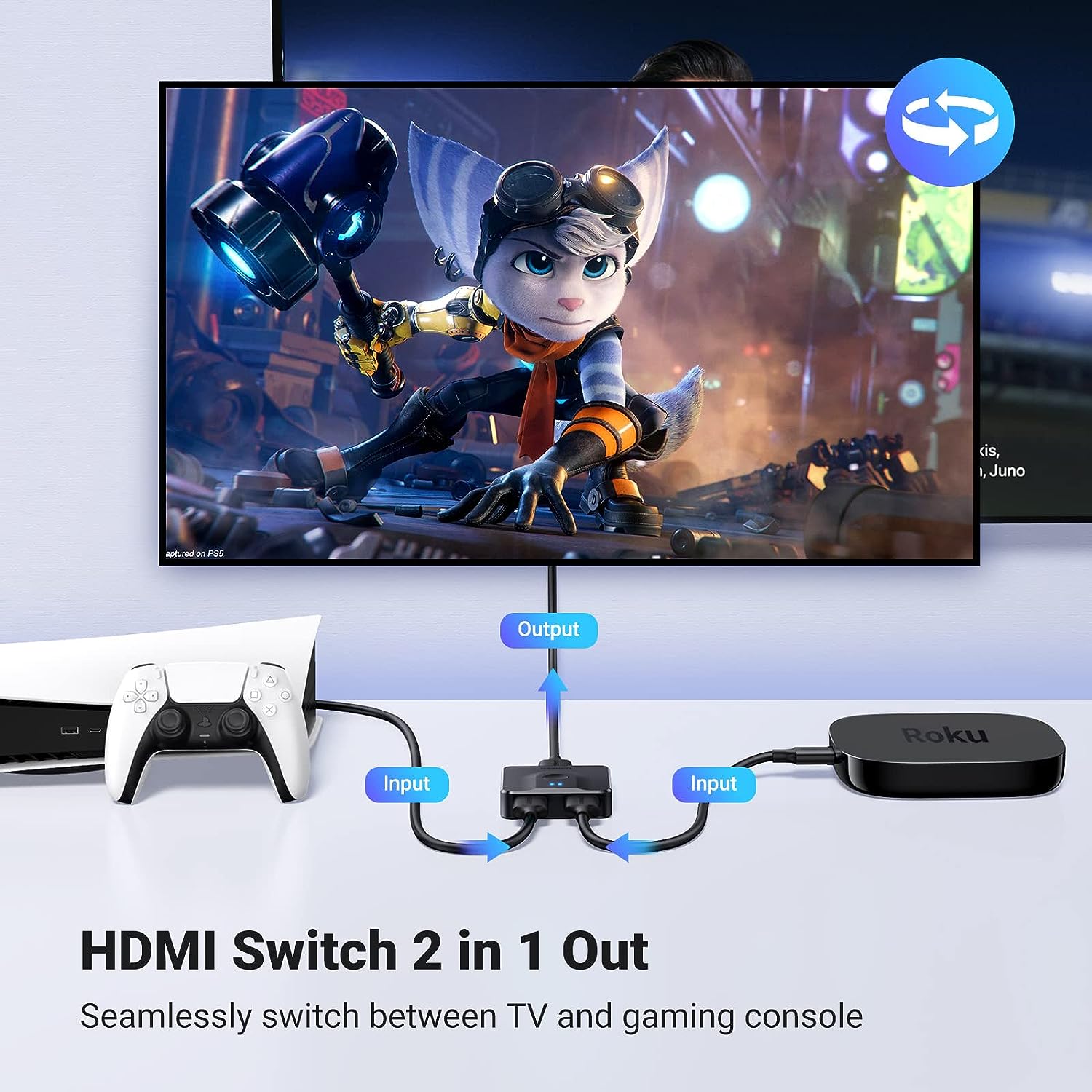

UGREEN HDMI BI-DIRECTIONAL SWITCH 2 PORTS 4K 60HZ
Additional information
Related products
HDMI HD VIDEO 4 PORT KVM SWITCH 4K
HK401
About this item
- KVM Switch 4 Port - The DGODRT HDMI USB Switch allows you to manage 4 computers through 1 monitor and 3 USB devices, such as keyboard, mouse, printer, scanner, and you can easily switch between 4 computers. Make your work and life simpler and more efficient.
- HD 4K@30Hz Visual Enjoyment - The HDMI KVM Switch supports 4Kx2K@30Hz resolution, which can make the image display more delicate and realistic, and make the color more vivid and moving, really let you feast your eyes. It is also backward compatible with lower resolutions, such as 1080P, 720P.
- Button Switch & Wired Remote - Our USB HDMI Switch Box has two switching methods, you can switch PCs by pressing the panel buttons, or you can switch PCs by using the wired remote control without getting up from your seat. Its LED lights can indicate active PC.
- High Compatibility - This HDMI USB KVM Switcher is compatible with most devices with HDMI interfaces, such as laptop, PC, Blu-ray player, monitor, TV, projector, etc. And it is also driver-free for Windows 10/8/8.1/7, Mac OS, Unix and Dos.
Mikrotik CSS326-24G-2S+RM 24 PORT Managed Gigabit Ethernet Supports Power Over Ethernet (PoE) 1U Network Switch, 2x SFP, White
Mikrotik Managed Gigabit Switch
Rack ears
24V 1.2A power adapter
Screw set (4)
Expert Features
- Cloud Smart Switch 326-24G-2S+RM is SwOS powered 24 port Gigabit Ethernet switch with two SFP+ port
- It gives you all the basic functionality for a managed switch, plus more
- Allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields
- SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules
- International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.
Other Characteristics
• Non-blocking Layer 2 switching capacity • 16K host table • IEEE 802.1Q VLAN • Supports up to 250 VLANs • Port isolation • Port security • Broadcast storm control • Port mirroring of ingress/egress traffic • Rapid Spanning Tree Protocol • Access Control List • MikroTik neighbor discovery • SNMP v1 • Web-based GUIExpert Specifications
| Details | |
|---|---|
| Product code | CSS326-24G-2S+RM |
| Switch chip model | 98DX3216 |
| Dimensions | 443 x 144 x 44 mm |
| Operating System | SwOS |
| Storage size | 2 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -20°C to 70°C |
| Suggested price | $159.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 10-30 V |
| Max power consumption | 19 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 24 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 2 |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
Included parts
Rack ears
24V 1.2A power adapter
Screw set (4)
TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+, 61 W PoE Budget, 30 W PoE output, Up to 250m PoE Transmission. Traffic Separation, Plug and Play, Fanless, Metal Case (LS1210GP)
10-Port Gigabit Desktop Switch 8-Port PoE+
EXPERT FEATURES
- Full Gigabit Ports: 9× gigabit auto-negotiation RJ45 Ethernet ports and 1× gigabit SFP port provide up to 20 Gbps switching capacity
- 61 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable; Up to 30 W PoE output is supported by each PoE port
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
- Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm
- Plug and Play: Simply plug and play for instant connectivity with no configuration required
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses
- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments
KVM Switch HDMI 4 port Boxes, 4K@30hz USB KVM HDMI Console for 4 Computers sharing Keyboard Mouse and HD Monitor with 4 pack – 2in1 KVM Cables + Desktop Selector Included
KVM Switch HDMI 4 port Boxes
| Operation mode | Manual |
| Contact type | Normally Open |
| Connector type | hdmi,usb |
| Brand | MT-VIKI |
| Item dimensions L x W x H | 11 x 6 x 1 centimetres |
| Circuit type | 2-way |
| International protection rating | IP54 |
| Controller type | Push Button |
| Control method | Remote |
| Connectivity protocol | Bluetooth |
|
|
Expert Features
4 port KVM switch HDMI
- Allows you to control 4 computers by only 1 set( monitor, keyboard, mouse).
- It can also share USB speaker, U disk or printer and USB 2.0 devices).
- Also support Bluetooth keyboard & mouse with a USB receiver, 3D & EDID.
Compatibility:
- This kvm switch 4 computers supports plug and play, no software required.
- Driver-free for Windows 11/10/8/8.1/7/Vista/XP and Mac OS, Linux.
Package includes:
- 1x KVM hdmi switch 4 ports, 1x Desktop selector, 1x Manual, 4 x special USB and HDMI cable (2in1, 4ft/1.2m), which makes your desk no more mess .
- Please plug the special HDMI cable/ USB pigtail into computer port.
Includes:
- Four 2in1 professional hdmi/usb KVM cables included, no cable mess up.
- Two switch options: extended desktop selector & pannel button.
- 4 port KVM switch x1 pcs
- MT-HK04
- 1.5M KVM cable x4 pcs
- Desktop controller x1 set
- User manual x1.
FROM THE MANUFACTURER
4 ports KVM switch with USB port for sharing 1 printer
- ►Upgrade1: MT-HK04 HDMI KVM switcher with wired desktop control (Switching by Button or Desktop control). Built with additional USB Hub.
- ►Upgrade2: the only one to come with 2in1 HDMI KVM cable, not 2 separated cables, no worry for cables mess.
- ►Plug and play, support hot-plug
- ►Upgrade3: Resolution up to 4K @30Hz/ 3840*2160, support 3D,1080P. And EDID storage switch, make sure the best transmission.
- ► Compatible with: Dos, Win3.X/ Win98/ 98SE/ 2000/ ME/ 2003/ 2008/ XP/ IOS/ MAC, Win7/ Win8/ WinNT/ Netware/ Unix/ Linux, applicable to XBox 360, XBox One, PS3 / PS4, Blu-Ray DVD player, TV, Route Roku.
- ►Packing: 4 port KVM switch x1 pcs, MT-HK04，1.5M KVM cable x4 pcs, Desktop controllerx1 set, User manual x1. (If wanna get longer cable please search ASIN: B09KTLMHK7 )
HDMI KVM Switch 4K 30Hz
This product is a compact 4-port KVM switch that lets you access and control 4 desktop, laptop or netbook computers. You can share a single USB keyboard, USB mouse and HDMI monitor with both systems, saving space on your desk and using your preferred display, keyboard and mouse with both computers.Features
- Support USB2.0 for any device EDID storage switch, make sure the best transmission
- Support super widescreen display
- Support Microsoft smart mouse Logitech network mouse
- Compatible with Windows series, Mac OS. Linux system
- Excellent image quality, resolution up to 3840*2160/30Hz
- Switching mode: panel switch, desktop controller Under normal operation of the computer, no need to turn off KVM switch and computer to plug or unplug the connected computer Used for online games, hard disk video recorder, computer room server, Mini MAC
GVISION 10/100/1000M Uplink Port switch poe support switch poe reverse and poe switch 8 port
1*10/100/1000M Uplink Port switch poe support switch poe reverse and poe switch 8 port
PRODUCT INTRODUCTION:
RPOE switch has intelligent device Power management features solving a major problem of powering the device for internet service provider.
This switch can be powered using remote power from customer using specially designed POE injector or any standard POE injector(24v DC,0.75amp).
This eliminates the needs of arranging power at building top (ups not require/No need to pay more money to customer or society).This saves lot of money of ISPs and improves uninterrupted service to the customer.
PRODUCT FEATURE:
REVERSE POE TECHNOLOGY:7Port 10/100+ 1G Reverse POE switch which has latest generation of fast Ethernet reverse POE switching technology. It contains 7*10/100 base T Reverse Poe ports (RPOE),1*10/100/1000 Base date Uplink Port&12V DC out for Powering ONU.
Supports Auto-Negotiation: Each of the ports automatically detect whether connected network devices are running at 10Mbps or 100Mbps (Up-link Port is 1000Mbps) and half-duplex or full-duplex mode, and adjusts the speed and mode accordingly ensuring easy and hassle-free operation.
Supports Non-blocking Wire Speed: The switch forwards and receives traffic seamlessly with its Non-blocking wire- speed. Every port of the Switch supports speeds up to 200Mbps(Up-link Port is 2000Mbps)in full-duplex mode simultaneously, providing full wire speed to connected devices and allowing you to run a high speed network smoothly.
Cascading support: switches can be cascaded for more users per Building (Up to 1 Main+3 switches )
Port base Isolation u/Hardware VLAN: The feature of Port Isolation is implemented in this unit where in the Ethernet Date of the Uplink Port can be transferred to any of the Downlink ports but the individual Downlink ports cannot communicate with each other.
Over voltage Protection: Over voltage Protection is provided on each date port to eliminate damage due to connection of higher voltage(Higher than 24V DC. Up to 30V DC). By mistake if user connect more than 24V POE injector then switch will goes on power off mode and will start working again once this high voltage source is removed.
Over current Protection: We have provided over current protection on each port to prevent damage to the switch in case of high current flowing due to any reason. This is provided using Resettable Fuse to facilitate easy maintenance and avoiding frequent change of blown fuse.
PRODUCT APPLICATION:
7*10/100 Base T Reverse POE Ports(RPOE) & 1*10/100/1000 Base T Uplink Port & 12V DC Power out for Powering ONU
PRODUCT SPECIFICTAION:
| Product | RPOE 7*10/100M+1*1000M 12V2A out |
| Ethernet Connector | RJ45 Jacks(8 Ports)10/100Base-TX with Auto-MDIX |
| 1*10/100/1000M Base T Data Uplink Port(port 1) | |
| 7*10/100 Base-Reverse POE Ports(Port 2to 8)Data + Power in | |
| standards | IEEE STD. 802.3 10BASE T 10Mbps,Half/Full Duplex IEEE STD. 802.3U 100BASE-TX,10/100Mbps,Half/Full Duplex IEEE STD.802.3X FLOW CONTROL AND BACK PRESSURE IEEE STD.802.3AZ Energy Efficient Ethernet |
| Protocols | CSMA/CD |
| Transmission Method | Store and forward |
| MAC ADDRESS | Support 8k MAC address |
| Packet Buffer | |
| Maximum Forwarding Packet Length | Supports 9216-byte jumbo packet length forwarding at wire speed |
| Filtering/Forwarding Rates | 1000Mbps Port – 148800pps 100Mbps Port – 14880pps 10Mbps Port – 14880pps |
| Network Cable | 4-pair UTP/STP Cat 5 cable |
| LEDs | Link/Activity per Ethernet port Power: On/Off for switch |
| Power Over Ethernet injector: Power Supply(IN) | Power over Ethernet 24V @ 18W on SPARE pair ( to supply power to the HDV switch as well as a compatible POE device(e.g. CPE) |
| No. of Ethernet Ports that can Power On the Switch & ONU | Any one /all of the seven Downlink Ports |
| Power Over Ethernet | Power over Ethernet injector on Four Pair Cable |
| DC Out | 12V/2A DC OUT THROUGH DC jack for powering other Device like ONU |
| Ethernet Devices that can be powered | Single |
| CAT-5 Cable Date Lines | Pair 1:Pins 1/2,Pair 2:Pins3/6 |
| CAT-5 Cable Power Lines | +VDC: Pins 4/5,-VDC:Pins 7/8 |
| Power consumption | 5 Watt (Poe injector) / 2 Watt (Switch) |
| Operating Temperature | 0℃to 50℃ |
| Storage environment | 0℃ to 75℃ |
| Operating Humidity | 20% to 95% (non-condensing) |
| Dimension of Switch | 125mm*70mm*25mm |
| Weight of Switch | 0.45KG |
